Name: H6 studio Recorder
Brand: Brass Direct
SKU: H6s
Price: 899.00 NZD
Availability: InStock

$899.00

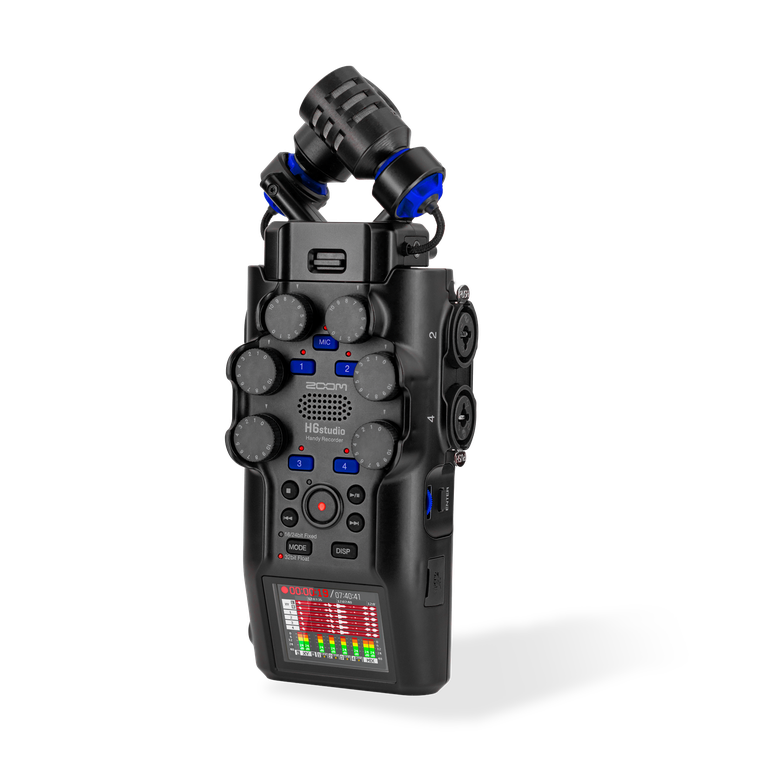

H6 studio Recorder

The H6studio features large-diaphragm XY microphones, four studio-grade preamps, and 32-bit float recording with dedicated gain knobs. Built with F-Series technology, it’s the most advanced Handy Recorder to date.

The onboard mics are stacked at a 90º angle to form a perfect X/Y pair. This minimizes phase cancellation commonly experienced with AB and other mic arrangements that can result in hollow sound.

Specs

INPUT AND OUTPUT CHANNELS

Inputs	Mic capsule	1
	MIC/LINE (mono)	4
Outputs	LINE OUT	1
	Headphone	1
	Built-in speaker (mono)	1

INPUTS

XY mic (XYH-5s)	90º XY stereo format
	Pickup pattern	Unidirectional
	Sensitivity	–41 dB/Pa at 1 kHz
	Maximum sound pressure input	140 dB SPL
MIC/LINE IN (XYH-5s)	Connector	1 stereo mini jack
	Input gain	−∞ – +60 dB
	Input impedance	2 kΩ or more
	Plug-in power	2.5 V
MIC/LINE (mono)	Connectors	4 XLR/TRS combo jacks
		(XLR：2 HOT, TRS：TIP HOT）
	Input gain	−∞ – +60 dB
	Input impedance	MIC: 3 kΩ or more
		LINE: 3 kΩ or more
	Maximum input level	MIC: +4 dBu
		LINE: +24 dBu
	Phantom power	+48 V
	Equivalent input noise	–127 dBu or less (IHF-A) at 150Ω input

OUTPUTS

LINE OUT	Connector	1 stereo mini jack
	Maximum output level	+1 dBu
	Output impedance	110 Ω or less
Headphone	Connector	1 stereo mini jack
	Maximum output level	20 ｍW + 20 ｍW（when 32 Ω load）
	Output impedance	10 Ω or less
Built-in speaker	Type	20 mm x 30 mm elliptical dynamic speaker
	Effective maximum output	250 mW

RECORDER

Maximum simultaneous recording tracks	8
Maximum simultaneous playback tracks	6
Recording formats	WAV
	44.1/48/96/192 kHz,
	16-bit/24-bit/32-bit float
	mono/stereo
	BWF and iXML formats supported
Recording media	microSDHC memory cards
	microSDXC memory cards

^{CLICK HERE for information about microSD cards that have been conﬁrmed to work with this unit.}

DISPLAY

2.00" full-color LCD	320 x 240

USB

Connector		USB Type-C
		• Use a USB cable that supports data transfer.
Audio Interface		USB 2.0 High Speed
	Input and output channels	6 in / 2 out (Multi)
		2 in / 2 out (Stereo)
	Sampling frequencies	44.1/48/96 kHz (audio interface only)
		44.1/48 kHz (audio interface + onboard recording)
	Bit depths	24-bit, 32-bit float
File transfer		USB 2.0 High Speed

REMOTE

Dedicated wireless adapter	ZOOM BTA-1

POWER

4 AA batteries	Alkaline, lithium or rechargeable NiMH batteries
AC Adapter	ZOOM AD-17 (DC 5 V/1 A)
	• USB bus power is supported.

ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 2-track (XYH-5s) recording

Alkaline batteries	About 15 hours
NiMH batteries (1900 mAh)	About 12 hours
Lithium batteries	About 26 hours

At 48 kHz/32-bit float with phantom power off, no headphones, no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium_{• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods. They will vary greatly according to use conditions.}

ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 6-track (XYH-5s and inputs 1–4) recording

Alkaline batteries	About 4.5 hours
NiMH batteries (1900 mAh)	About 5 hours
Lithium batteries	About 11 hours

At 48 kHz/32-bit float with phantom power off, headphones used (33Ω load), no LINE OUT, no REMOTE, Power Saving on, Display Brightness Medium_{• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.}

ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 6-track (XYH-5s and inputs 1–4) recording

Alkaline batteries	About 2 hours
NiMH batteries (1900 mAh)	About 3 hours
Lithium batteries	About 6.5 hours

At 192 kHz/32-bit float with phantom power on (INPUTS 1-4), headphones used (33Ω load), LINE OUT used (10KΩ load), REMOTE used (BTA-1), Power Saving On, Display Brightness Bright_{• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.}
